Product Parameter
ELECTRICAL CHARACTERISTICS | ||||||||||||
Model | SN- ME-SC75W | SN- ME-SC100W | SN- ME-SC200W | SN- ME-SC300W | SN- ME-SC400W | SN- ME-SC400W | ||||||
Folding Number | 2pcs | 2pcs | 4pcs | 4pcs | 4pcs | 4pcs | ||||||
Cell Efficiency | ＞22％ | ＞23％ | ＞23％ | ＞23％ | ＞23％ | ＞22％ | ||||||
Max Power Voltage | 20V | 18V | 18V | 20V / 39V | 41V | 39V | ||||||
Max Power Current | 3.75A | 5.5A | 11.11A | 15A / 7.69A | 9.76A | 10.26A | ||||||
Open Circuit Voltage | 24V | 21.6V | 21.6V | 24V / 46.8V | 49.2V | 46.8V | ||||||
Short Circuit Current | 4.13A | 6.05A | 12.22A | 16.5A / 8.46A | 10.74A | 11.29A | ||||||

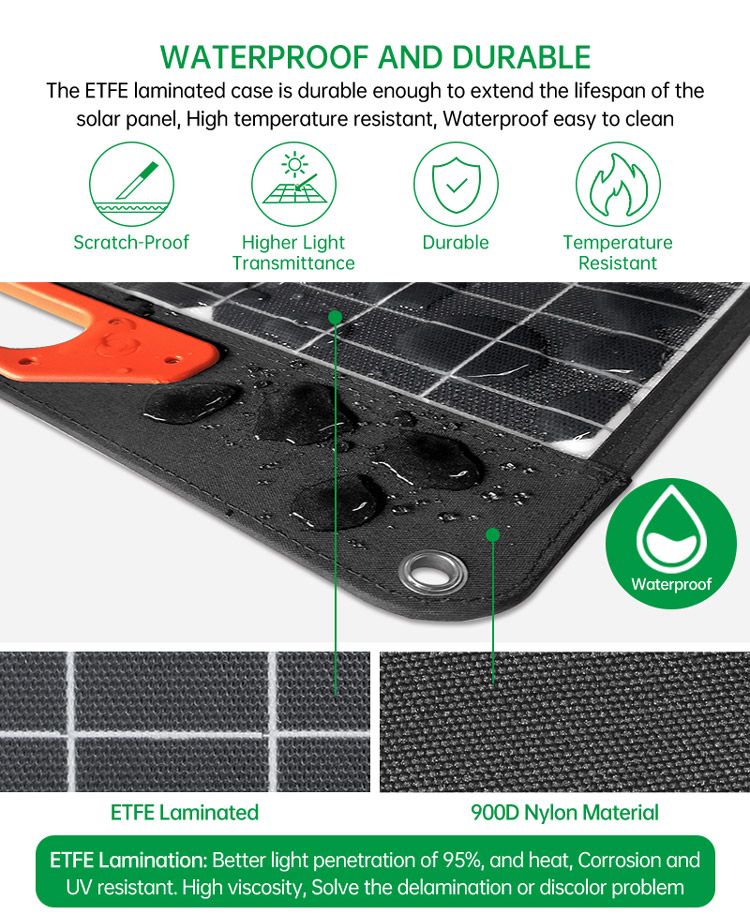

Fabric | 900D Nylon | 900D Nylon | 900D Nylon | 900D Nylon | 900D Nylon | 900D Nylon | ||||||
Number of Cells | 12 | 18 | 36 | 48 | 72 | 72 | ||||||
Cell Dimension | 166*166mm | 158.75*158.75mm | 166*166mm | 166*166mm | 166*166mm | 166*166mm | ||||||
Weight | 2.2kg | 4.6kg | 8.2kg | 12.5kg | 6.35kg | 9.0kg | ||||||
Expand Size | 915*550*10mm | 1230*560*10mm | 2360*560*10mm | 2370*720*10mm | 2360*1075*10mm | 3030*800*10mm | ||||||
Folded Size | 550*450*25mm | 560*615*25 mm | 560*615*25 mm | 720*630*25mm | 1075*615*35mm | 800*795*35mm | ||||||
Max Power Tolerance | +（0~5W） | |||||||||||
Color | Grey/Black/Camouflage | |||||||||||
Cable | 11-3.0Meter in length, length can be customized | |||||||||||
Note: All electrical parameters are rated at standard test conditions
(irradiance of 1000W/㎡,AM 1.5G,cell tempertaure 77F/25℃）

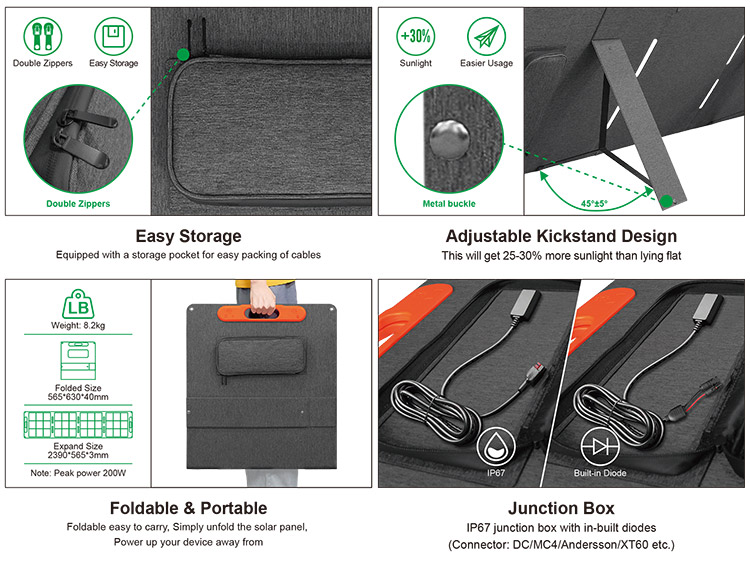

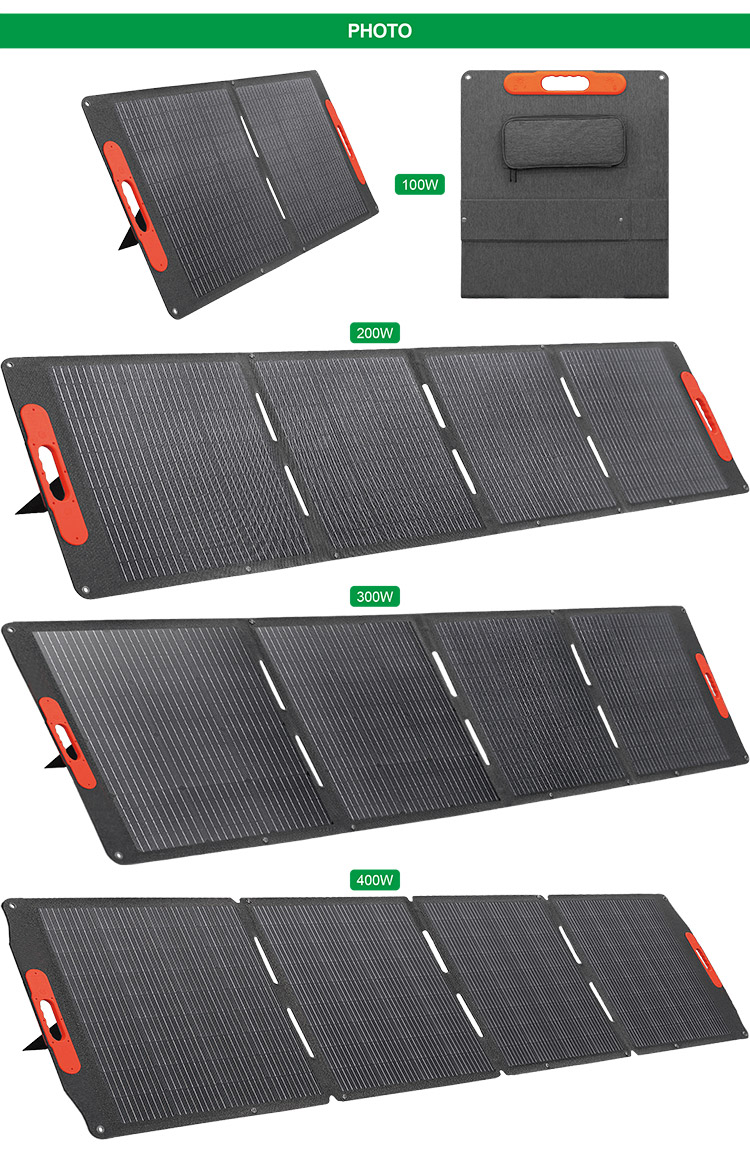

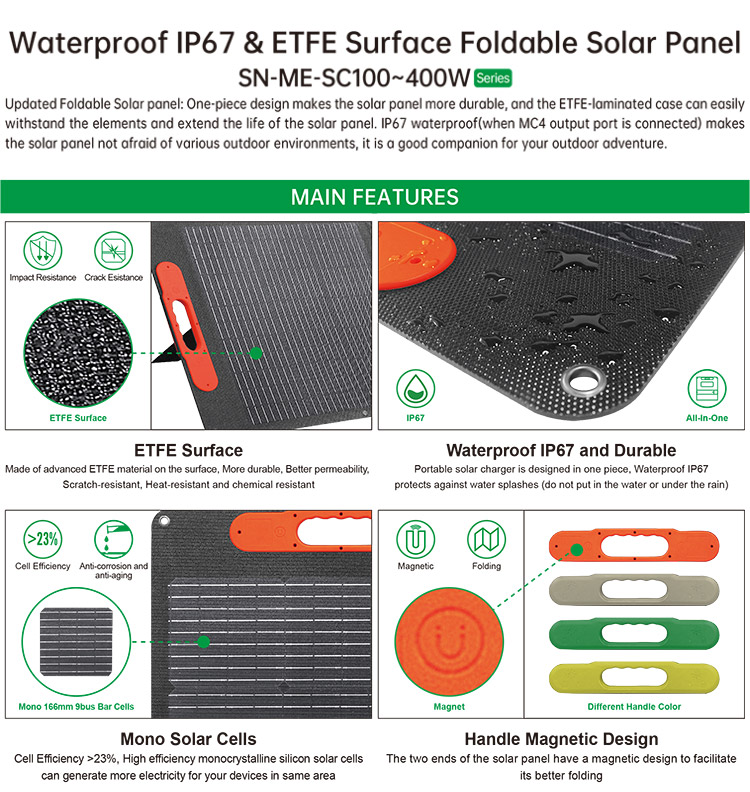

Products Description

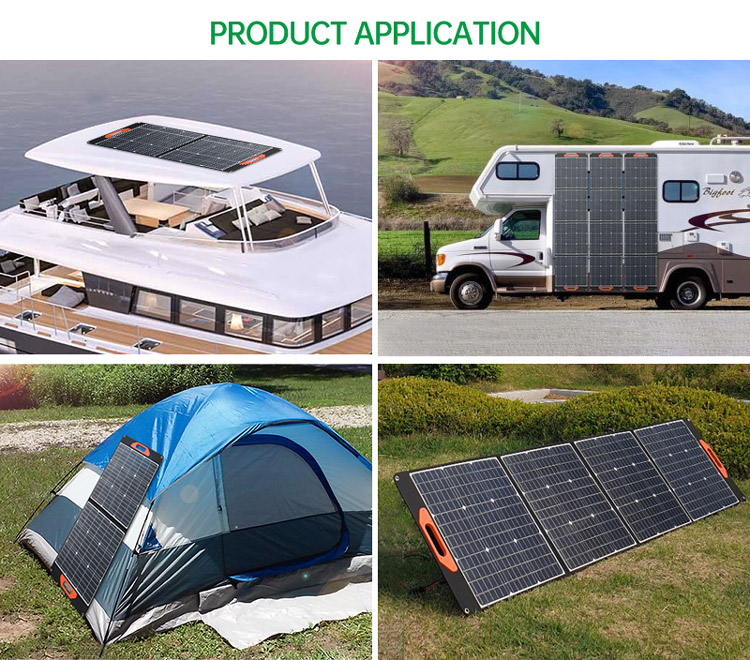

Application

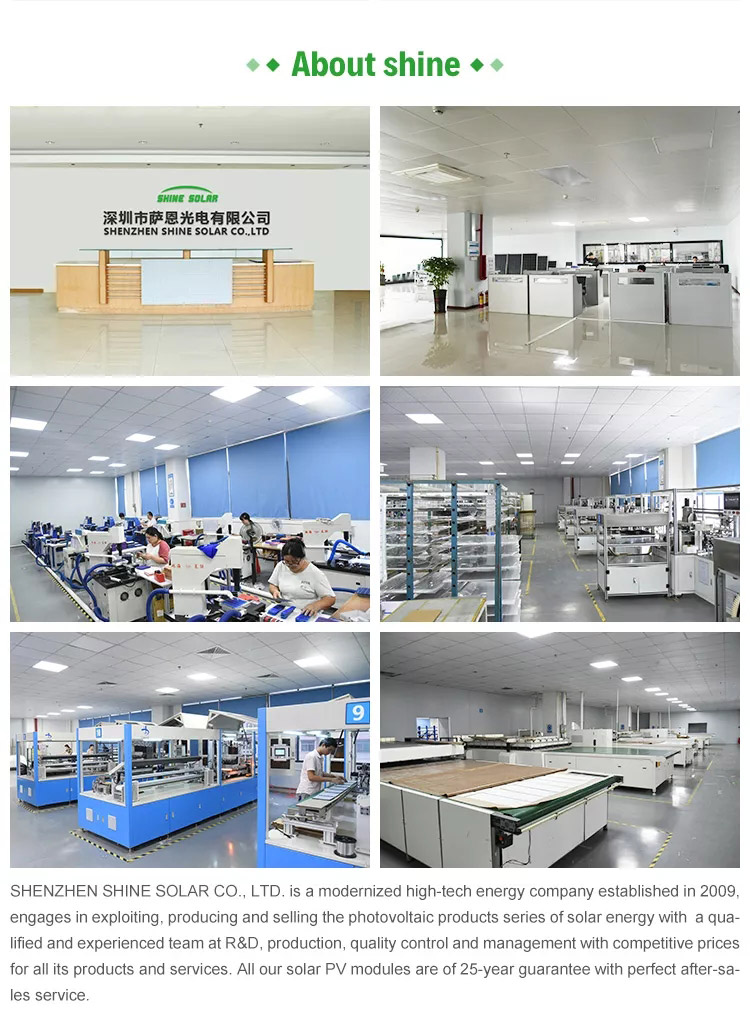

Company Information
Why Choose Us
Customer Photos
FAQ
1.Are you a trader or manufacturer?
A: We are a 10-years professional solar panel manufactuer in Shenzhen, supply OEM service.
2.What is your main product lines?
A: Mono/poly solar panel 0~500 watt, high efficiency semi flexible solar panel, CIGS flexible solar panel, folding solar panel and other portable solar products.
3.How about your after-sale service?
A: We have 24 hours after-sale service and professional after sales department, you can contact us via email, Alibaba, phone, WhatsApp for all service.
4.What is your delivery time?
A: Sample order is usually within 5 days, Bulk order is 15 days.
5.What if my quantity plan can’t reach your MOQ?
A: Click “Contact Supplier” to contact us.
2.What is your main product lines?
A: Mono/poly solar panel 0~500 watt, high efficiency semi flexible solar panel, CIGS flexible solar panel, folding solar panel and other portable solar products.
3.How about your after-sale service?
A: We have 24 hours after-sale service and professional after sales department, you can contact us via email, Alibaba, phone, WhatsApp for all service.
4.What is your delivery time?
A: Sample order is usually within 5 days, Bulk order is 15 days.
5.What if my quantity plan can’t reach your MOQ?
A: Click “Contact Supplier” to contact us.
